Supermicro SuperChassis 90-Bay JBOD

Highlights

Up to 90 Enterprise HDDs (SAS or SATA)
Up to 2.5PB raw capacity in 4U using 28TB HDDs
4 rack units height
Dual-port SAS for high availability

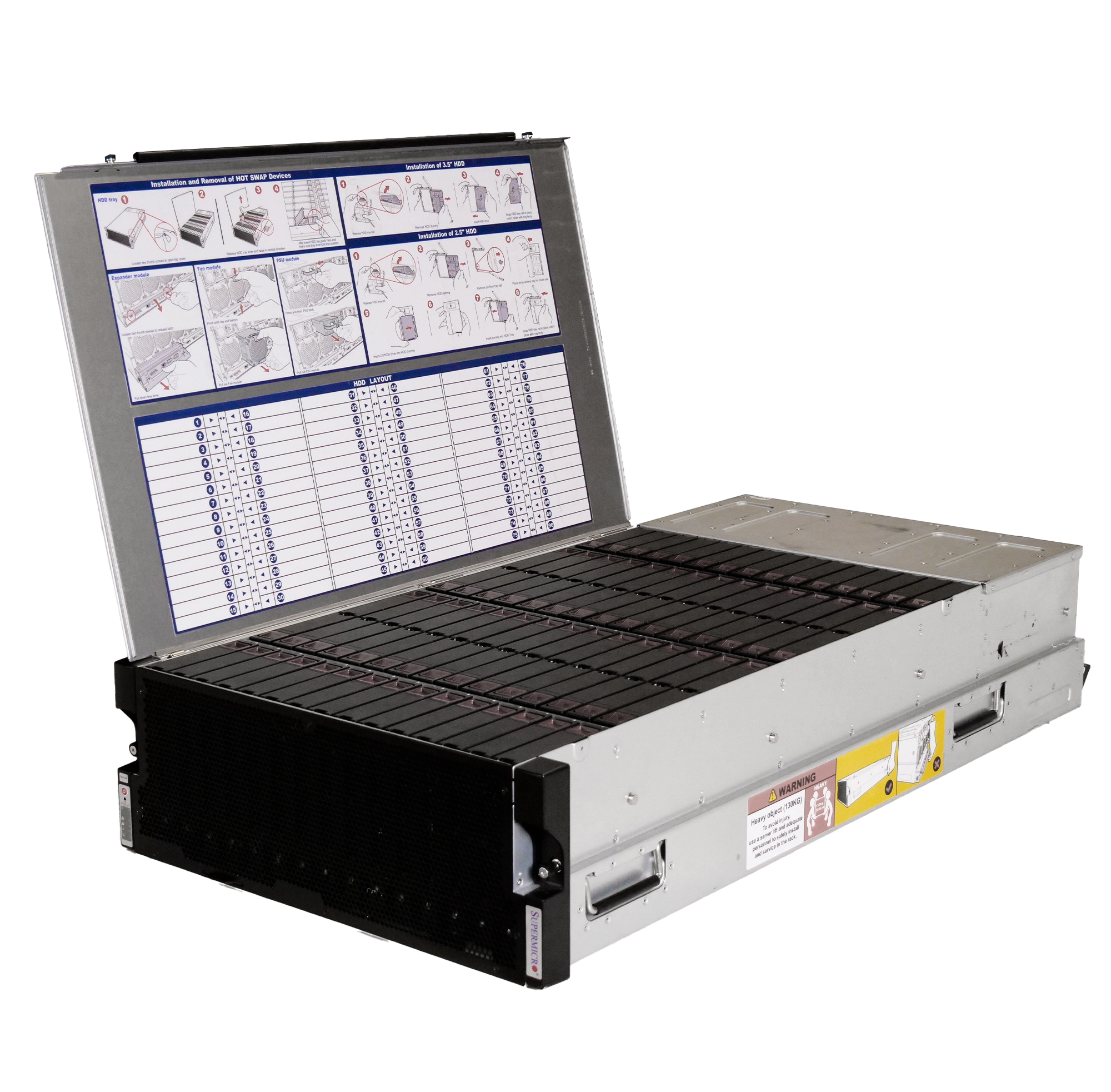

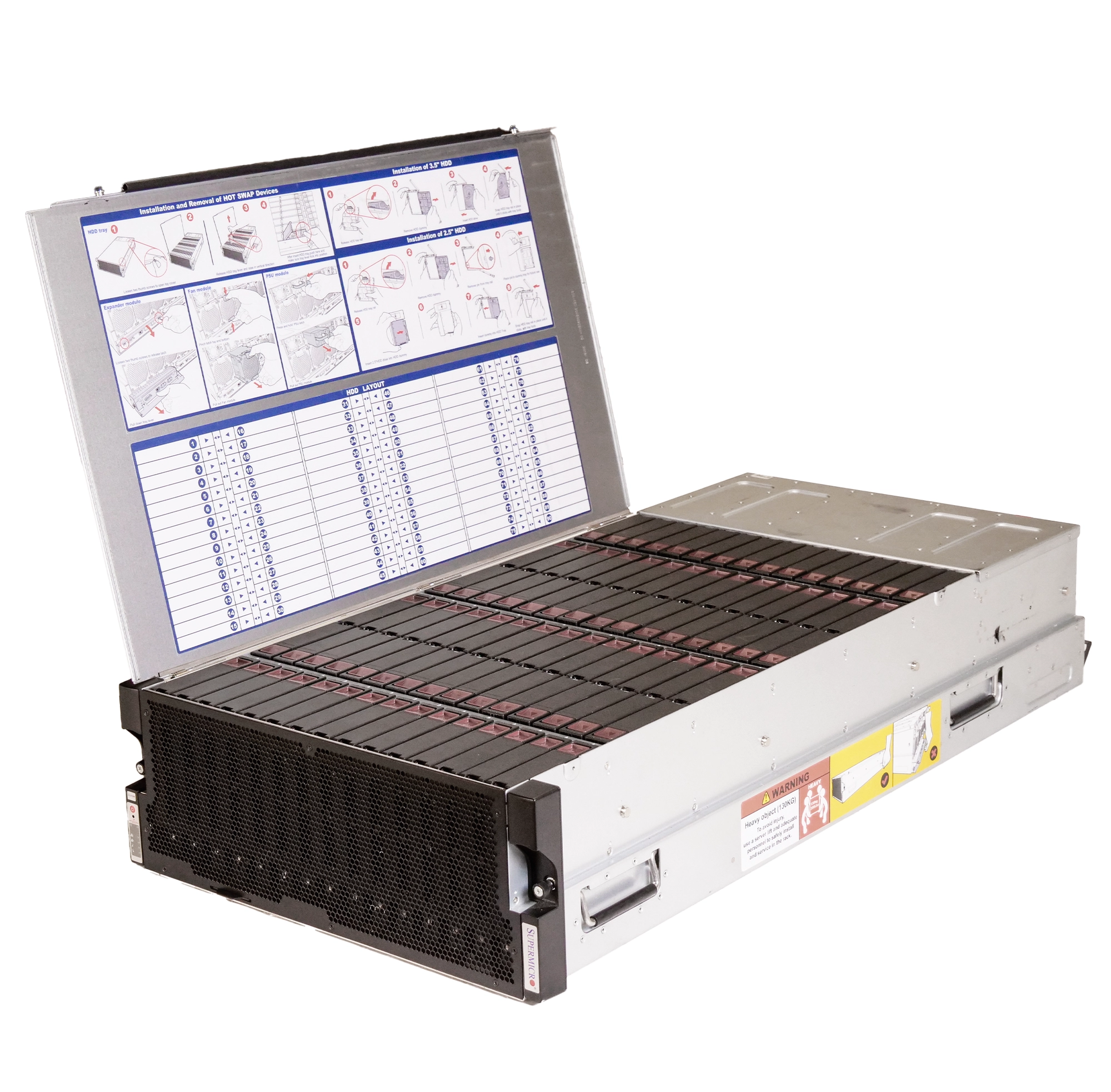

Rack-mounted top cover for quick and easy service

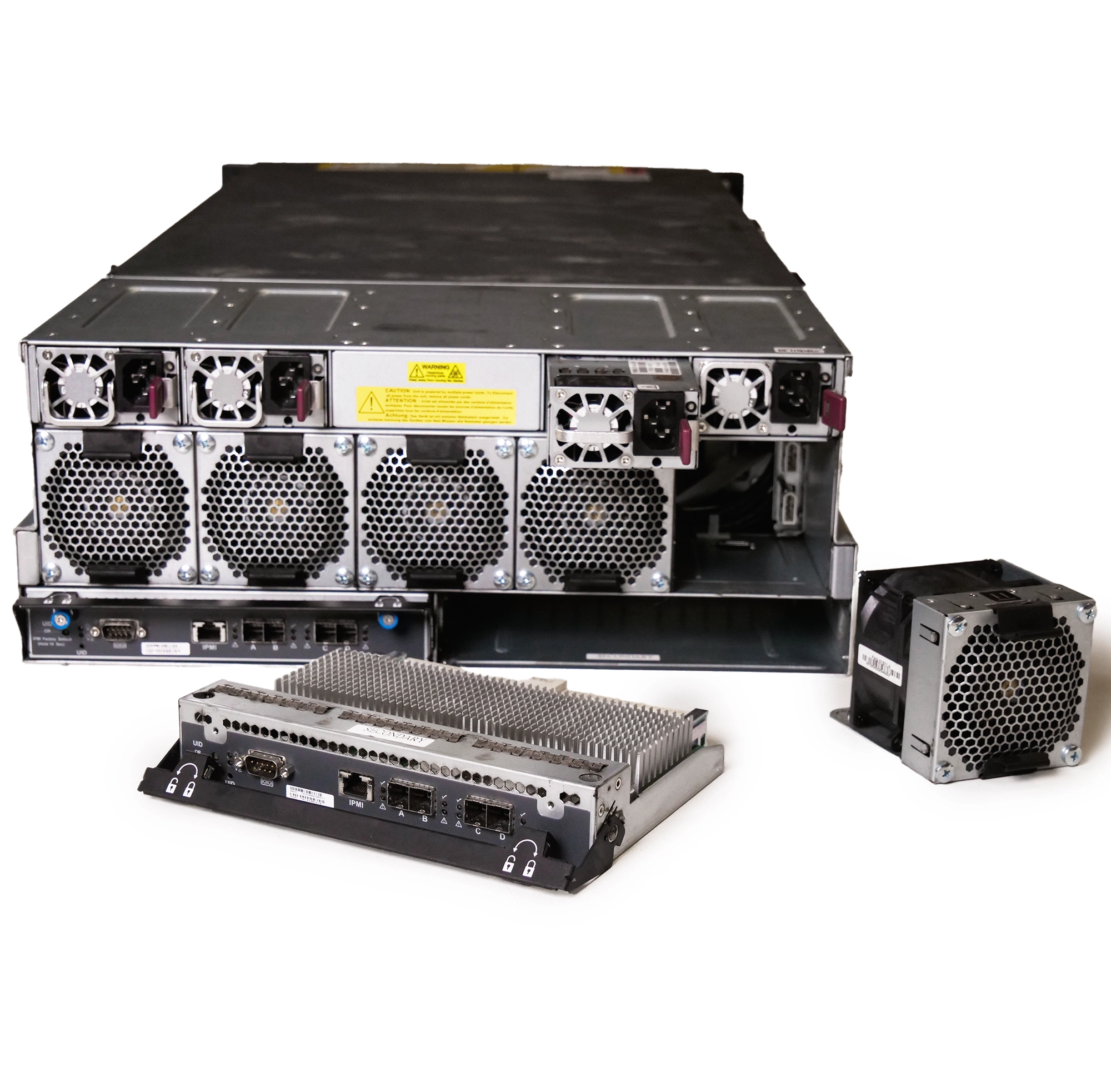

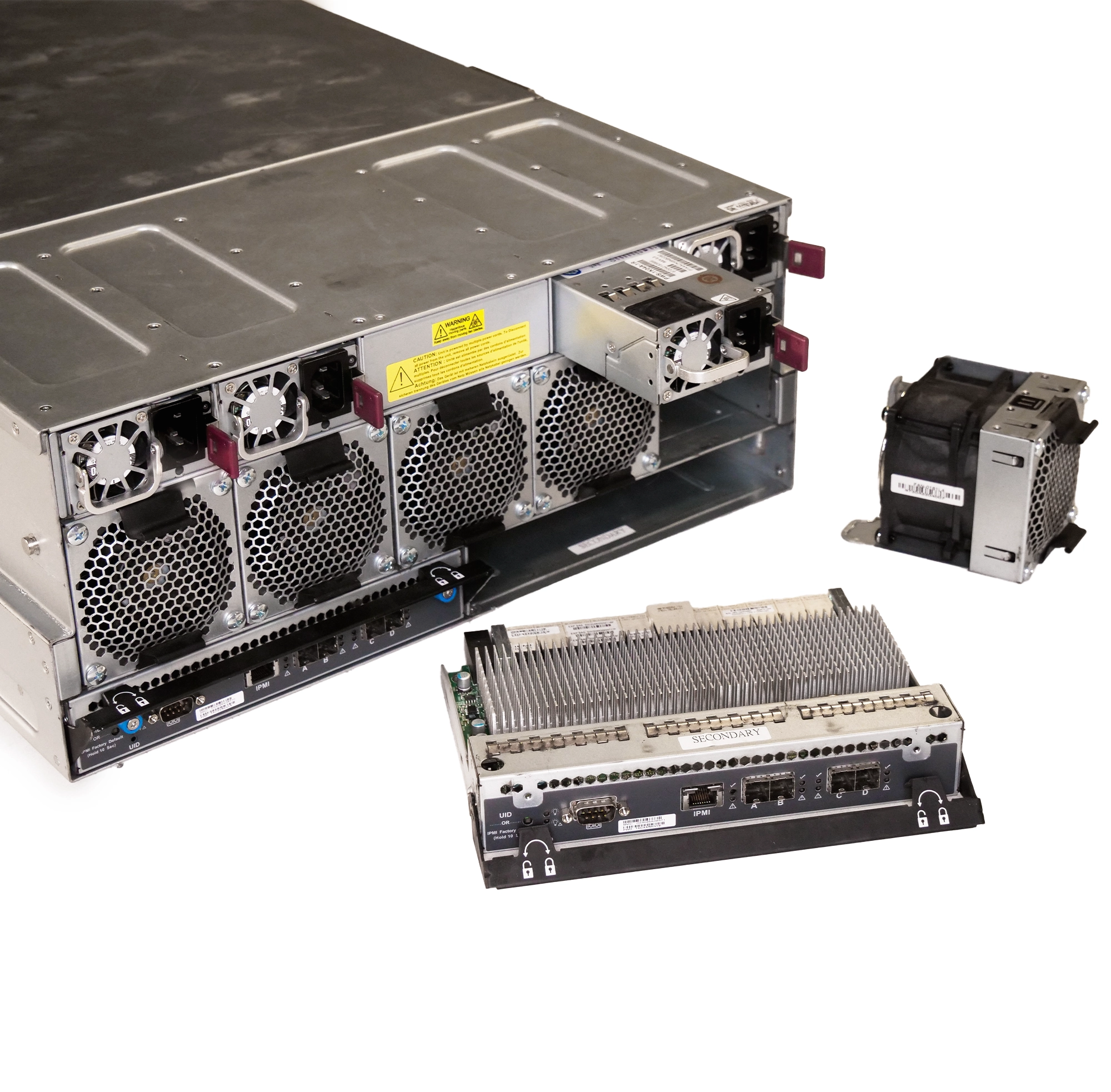

Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans
JBOD ships with Rails, 2x mini SAS Cables, Trays(Bare JBOD) and Power Cable

WARRANTY

6 Month Warranty on the JBOD Unit

Note: Many configurations available, contact us via or for custom options.

Applications and Workloads

SDS Environments
Big Data
Private Cloud
Data Analytics
Cloud Infrastructure

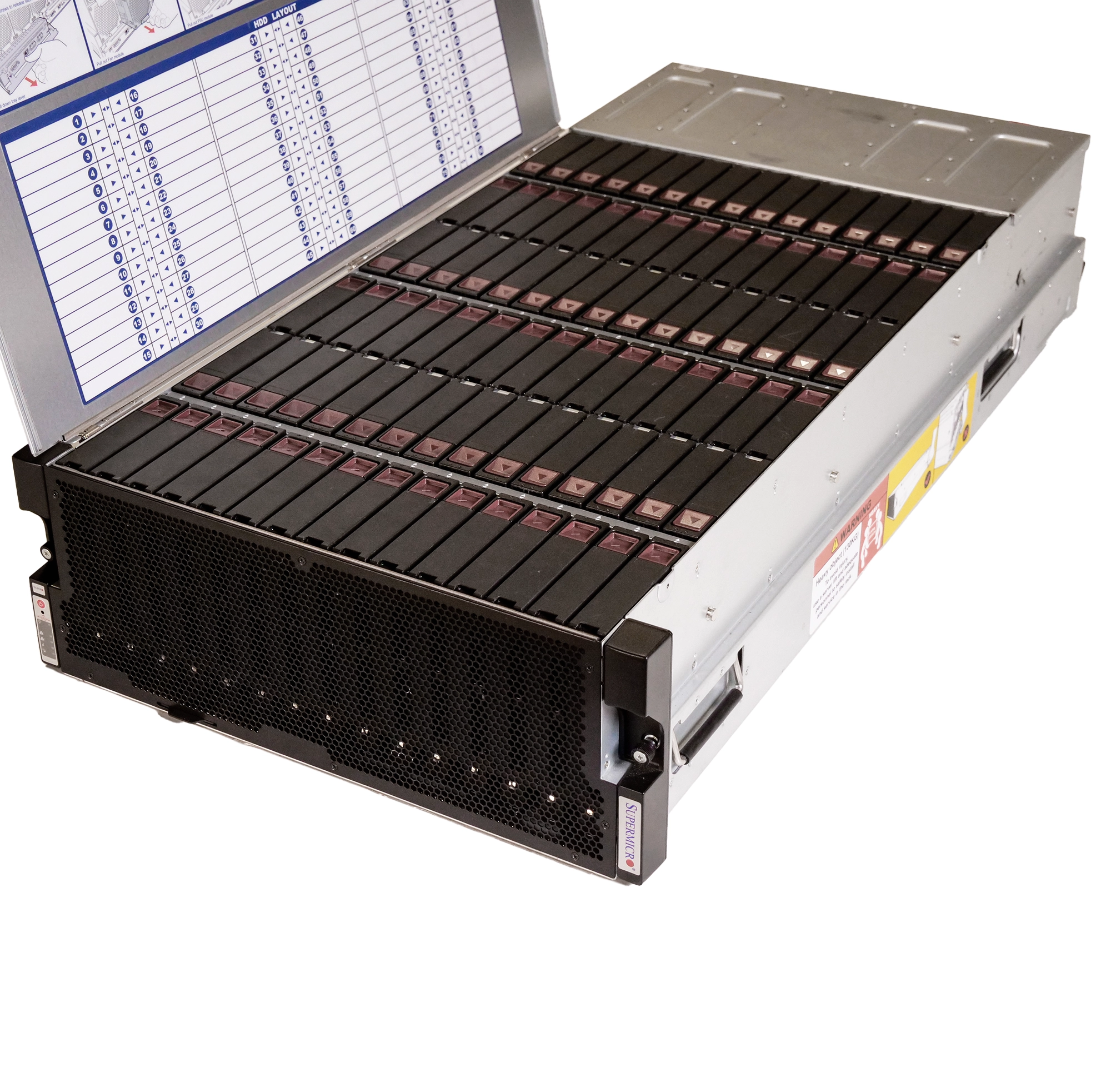

Max. Drives	90 x 3.5" drive bays
Drive Interface	12Gb/s SAS 6Gb/s SATA
Available Drive Capacities	HDD up to 28TB CMR

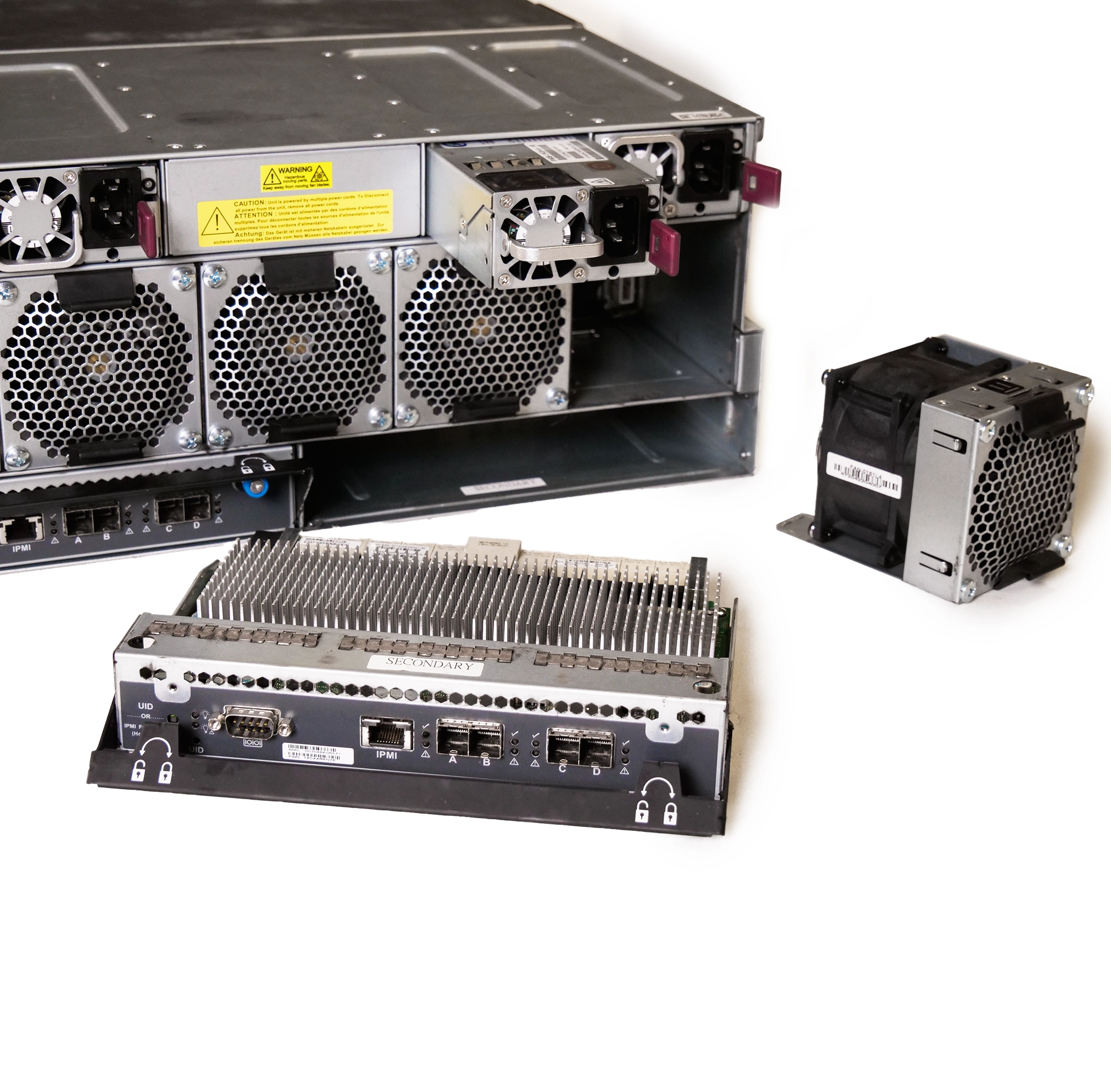

Host Interface	Dual redundant I/O Modules (IOM)* 4x Mini-SAS HD ports per IOM
Weight	Without Drives: 59kg (130lbs) With 90 HDDs: 120kg (265lbs)
LED Indicators	Front/Rear: Power, ID, Fault Drive: Activity, Fault
Physical Dimensions	Height: 178mm (7") Width: 447mm (17.6") Depth: 906mm (35.66")
Management	IPMI

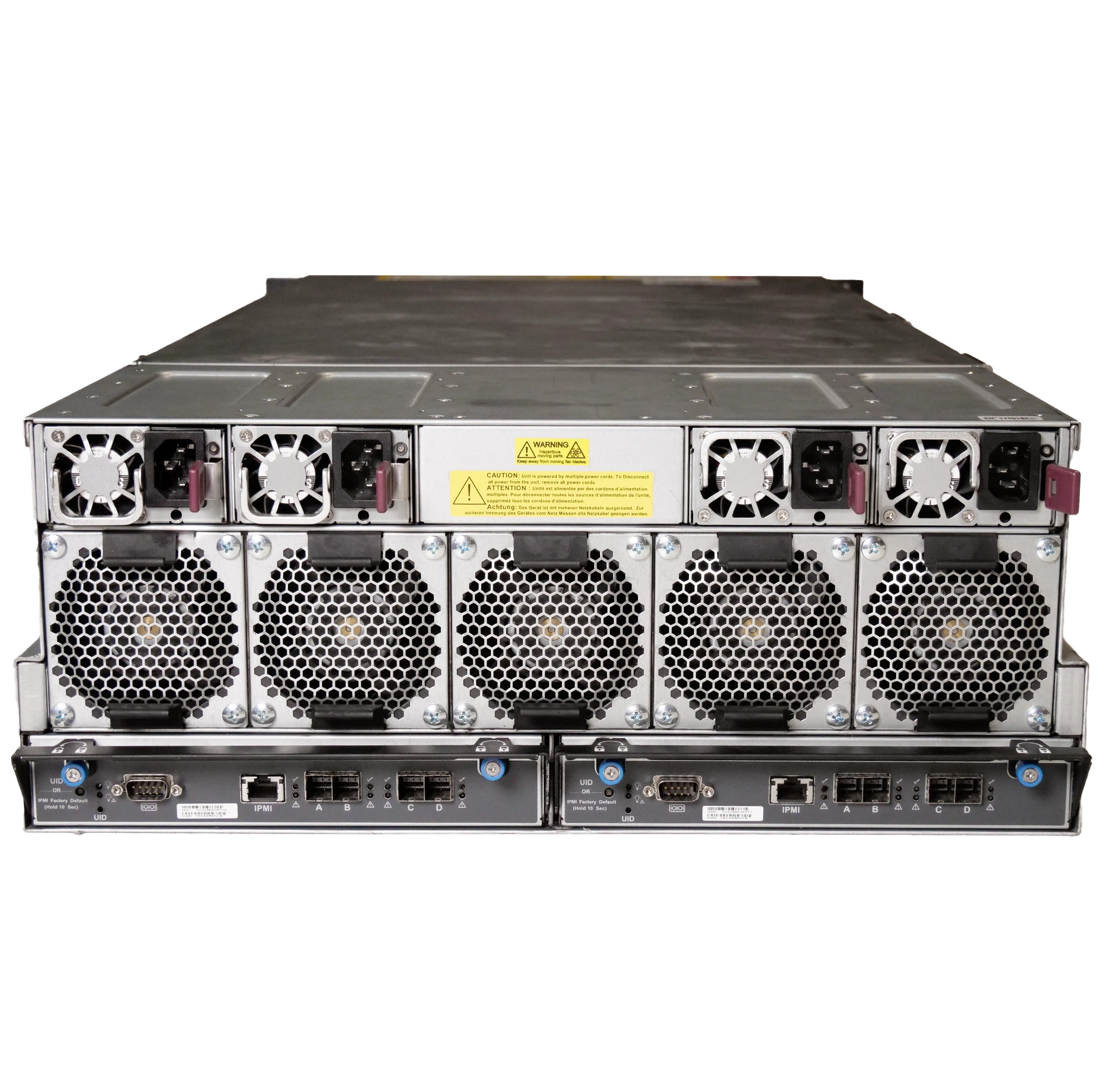

Power	4x 80 Platinum PSUs 800W with Input 100 - 127Vac 1000W with Input 200 - 240Vac

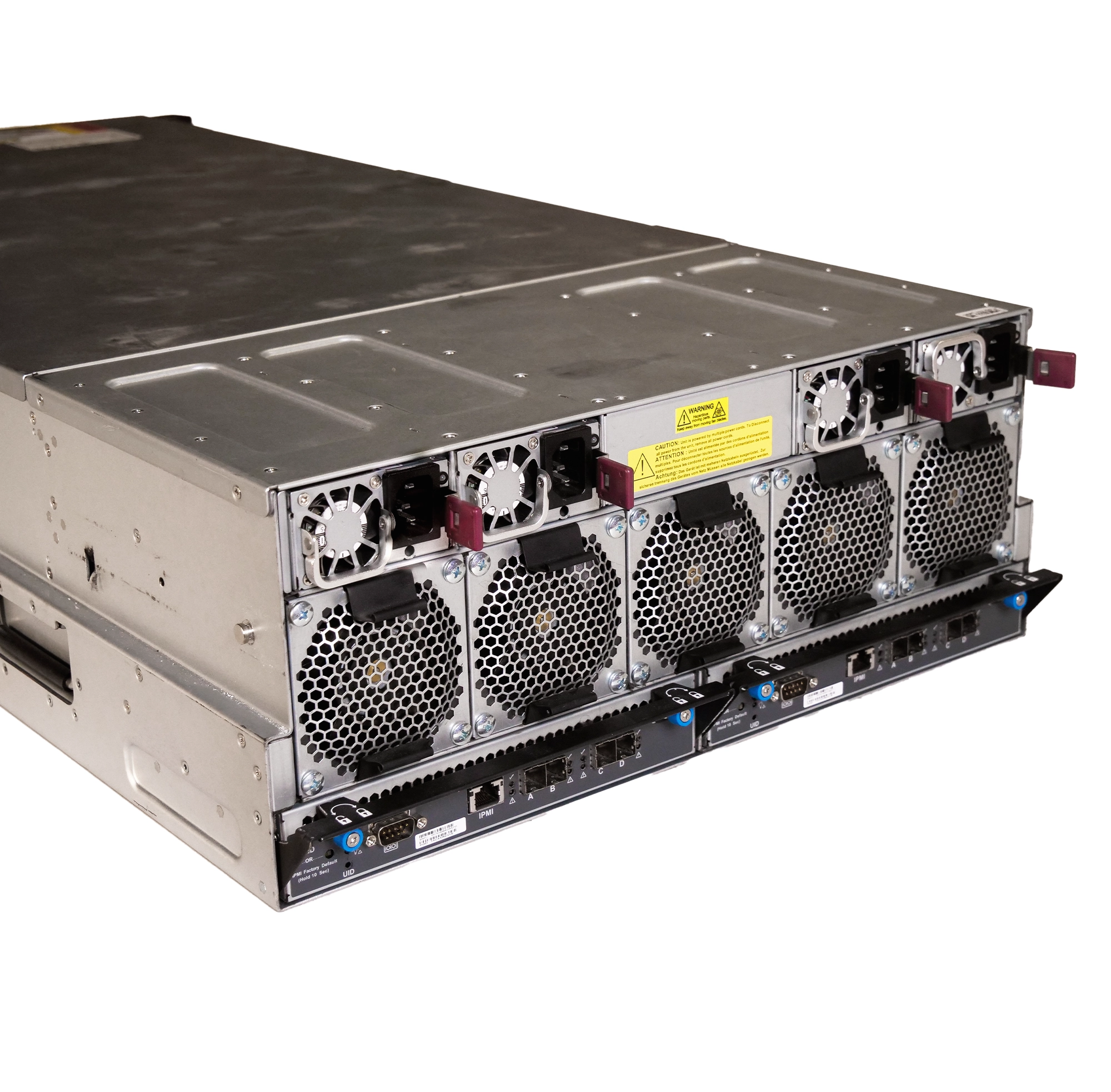

Cooling	5 80mm main enclosure fans 4x PSUs with built-in fans
Environmental	Operating Temperature: 5 C to 35 C Non-op Temperature: -40 to 70 C Humidity: 8 to 90% relative humidity Operating Altitude: -300m to 3048m (-984 ft to 10,000 ft) Sound Power: < 7.2Bels @ 23 C

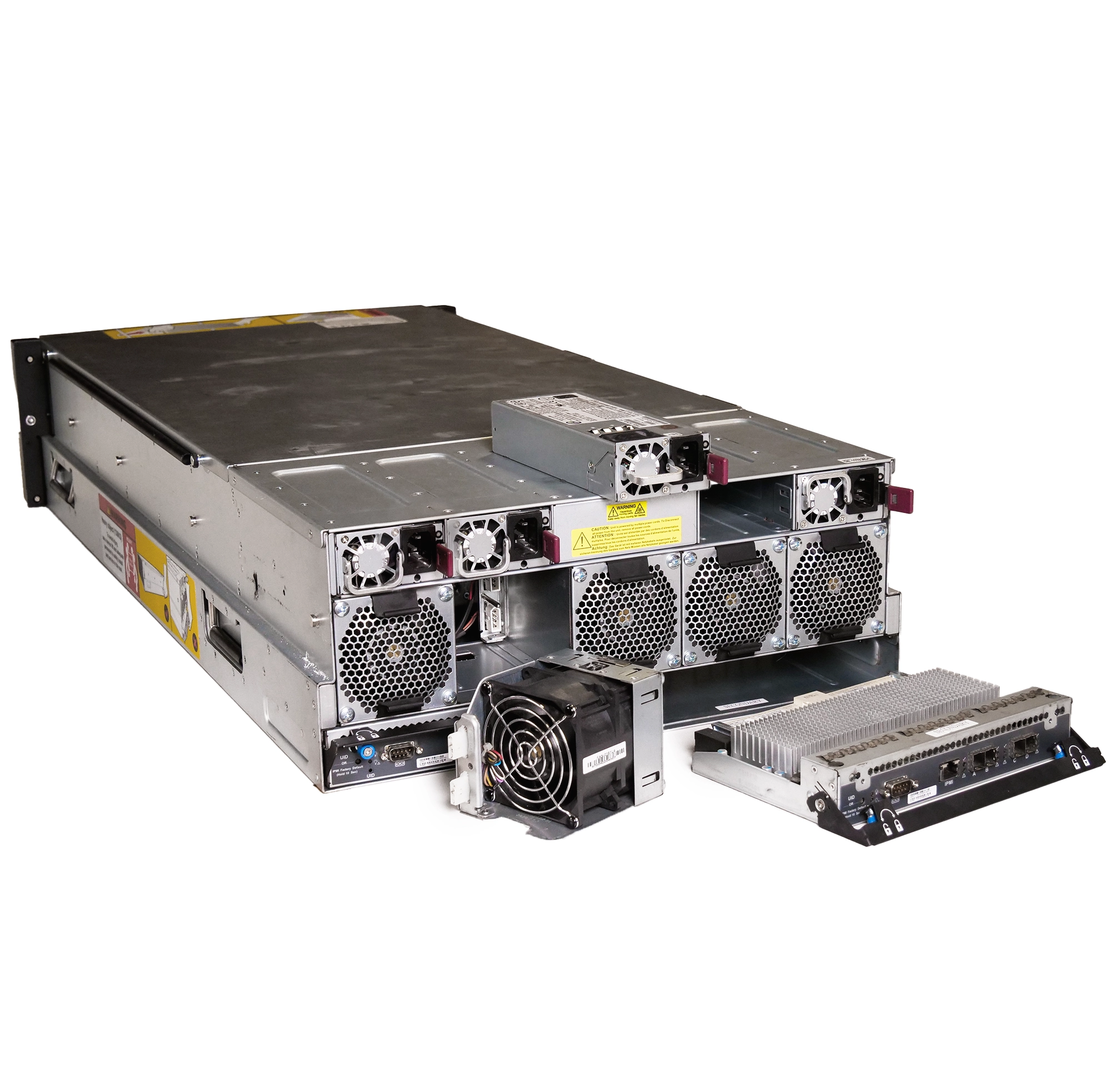

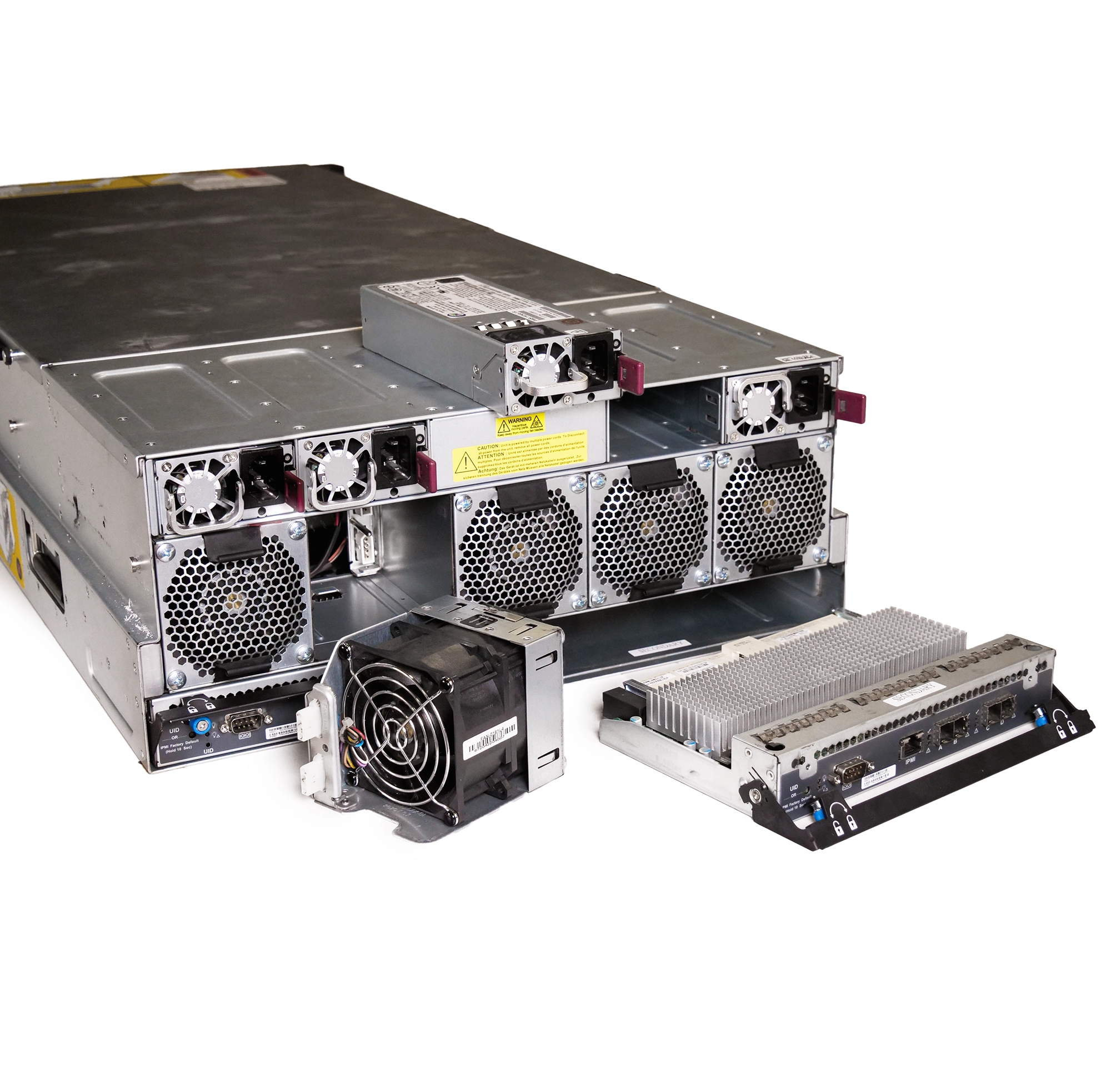

Serviceability	Cable-free hot-swappable IOM, power supply, fans and drives
