Specification:-
Available in 3 colours
- Dimensions: 115 x 70 x 18mm
- Weight 205g
- DAC: Four CS43198
- AMP: Two SGM8262
- CPU: Snapdragon 665
- Memory: 4GB RAM 64GB ROM MicroSD Card Slot
- System: Open Android 13
- Display: 4.7-Inch Sharp 1280 x 720
- Bluetooth Transmitter: V5.0 LDAC / aptX HD / aptX / SBC
- Bluetooth Receiver: V5.0 LDAC / SBC
- Hi-Res Support: PCM 32/768 & DSD512
- Battery 3500 mAh. Up to 14h Single-Ended, 11h Balanced
Audio Output specification:-
3.5mm Output:
Output Power
Low gain: 12.5mW@32Ω
Medium gain: 50mW@32Ω
High gain: 200mW@32Ω
THD N: 0.0007%
Separation: 75dB@32Ω
Dynamic Range: 127dB
Signal-to-noise ratio: 127dB
Noise <1.1uV
Output impedance: less than 1Ω
4.4mm Output:
Output Power
Low gain: 50mW@32Ω
Medium gain: 200mW@32Ω
High gain: 800mW@32Ω
Frequency Response: 20Hz-40kHz (-0.2dB)
THD N: 0.0007%
Separation: 110dB@32Ω
Dynamic Range: 130dB
Signal-to-noise ratio: 130dB
Bottom noise: <1.6uV
Output impedance: 1.5Ω
Features:-
>High-Performance Hi-Res Audio Player.
>Quad DAC Setup With Four CS43198 DAC Chips.
>Powerful Output With Dual SGM8262 Amp Chips.
>Brand-New Curvy Design with Aluminium Alloy Body.
>4.7” Colorful Touchscreen Display.
>Open Android 13 OS with AGLO Audio Processing.
>4GB RAM and 64GB Internal Storage.
>Snapdragon 665 SoC Chipset.
>Two-Way Bluetooth V5.0 Connectivity.
>High-Resolution Bluetooth Protocol Support.
>Supports Hi-Res Audio Processing(32-Bit/768khz & DSD512).
>USB DAC Mode.
>USB Transport Feature.
>High-Capacity 3,500mAh Battery.
>Outstanding Battery Life(up to 14H).

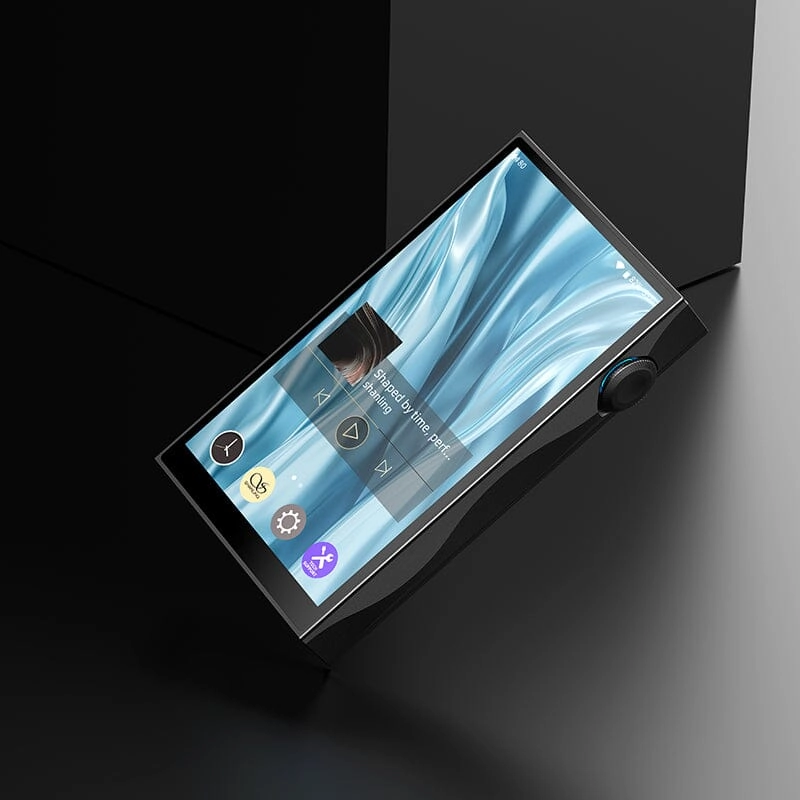

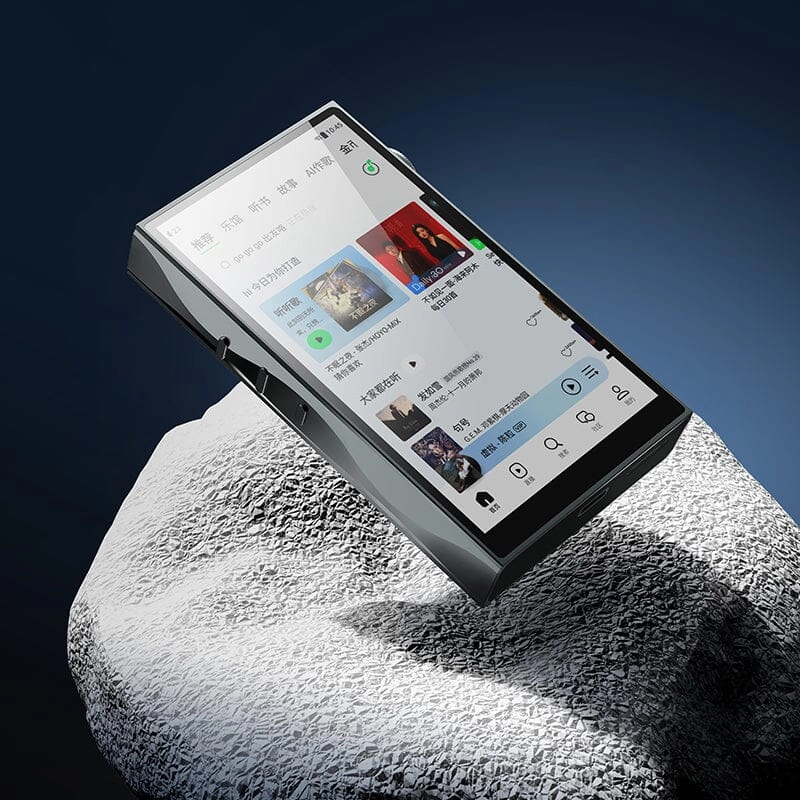

Presenting the all-new Shanling M3 Plus, a high-performance High-Resolution portable audio player. Equipped with a premium quad-DAC arrangement featuring four CS43198 flagship DAC chips, the Shanling M3 Plus promises top-tier performance with high-res PCM and native DSD audio signal processing. It comes loaded with a strong amplifier section with a rated output of about 800mW @ 32Ω impedance load. This strong output thrust is achieved with dual SGM8262 amp chips that provide strong amplification while maintaining excellent clarity with high Dynamic Range, SNR, and ultra-low distortion characteristics. Shanling M3 Plus features a brand new curvy design. It comes loaded with open Android 13 OS and is equipped with premium quality components such as Snapdragon 665 SoC, 4GB RAM, etc. This helps in smooth operation and true high-resolution audio signal processing. Shanling M3 Plus features Android 13 OS with AGLO Technology(Android Global Lossless Output). The latest M3 Plus marks its presence in the portable HiFI audio world with its excellent sound characteristics.
All-New Curvy Design:-

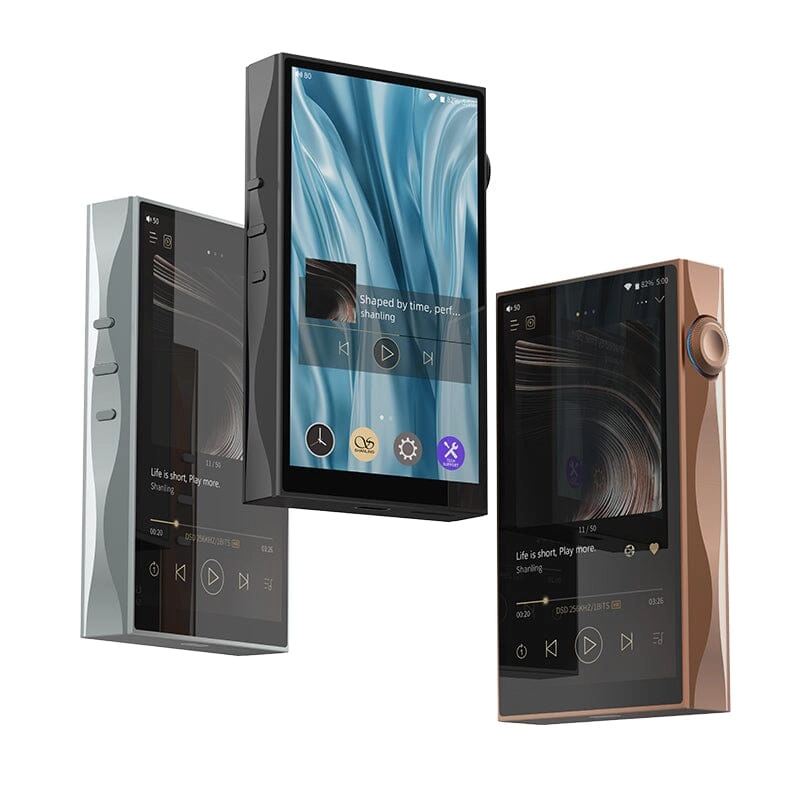

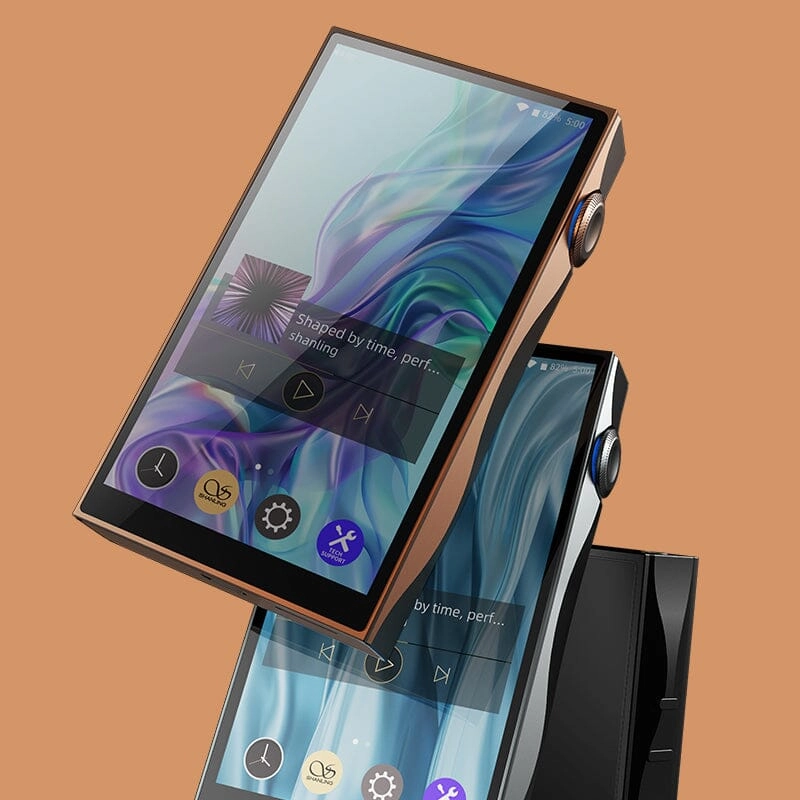

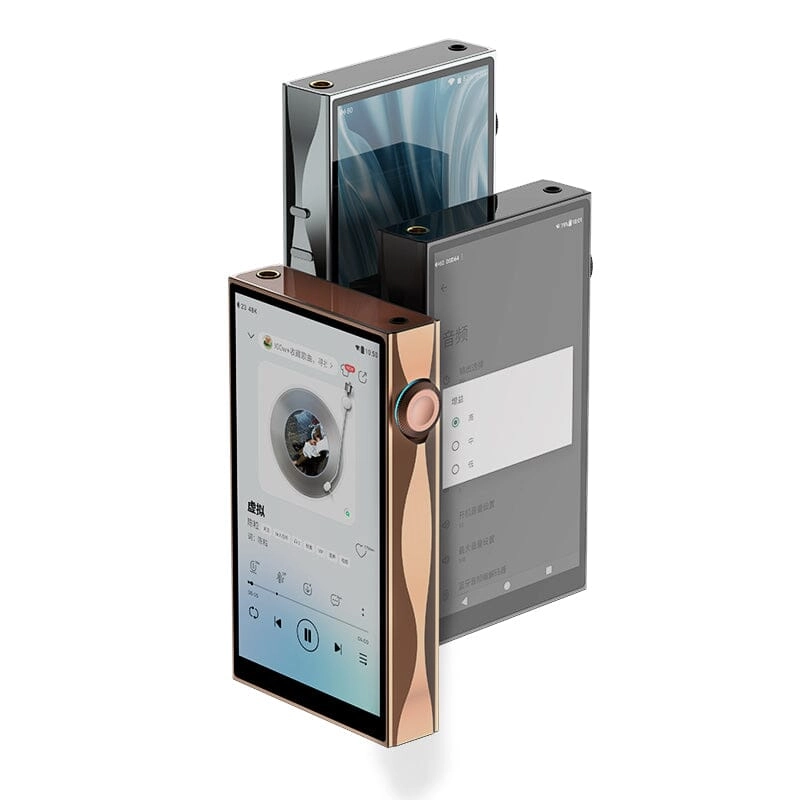

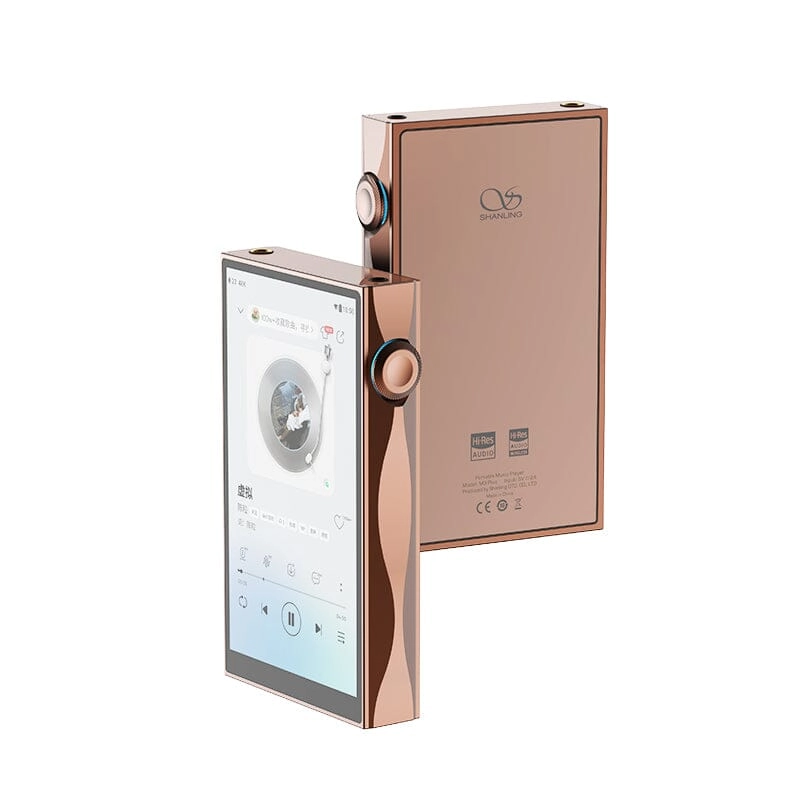

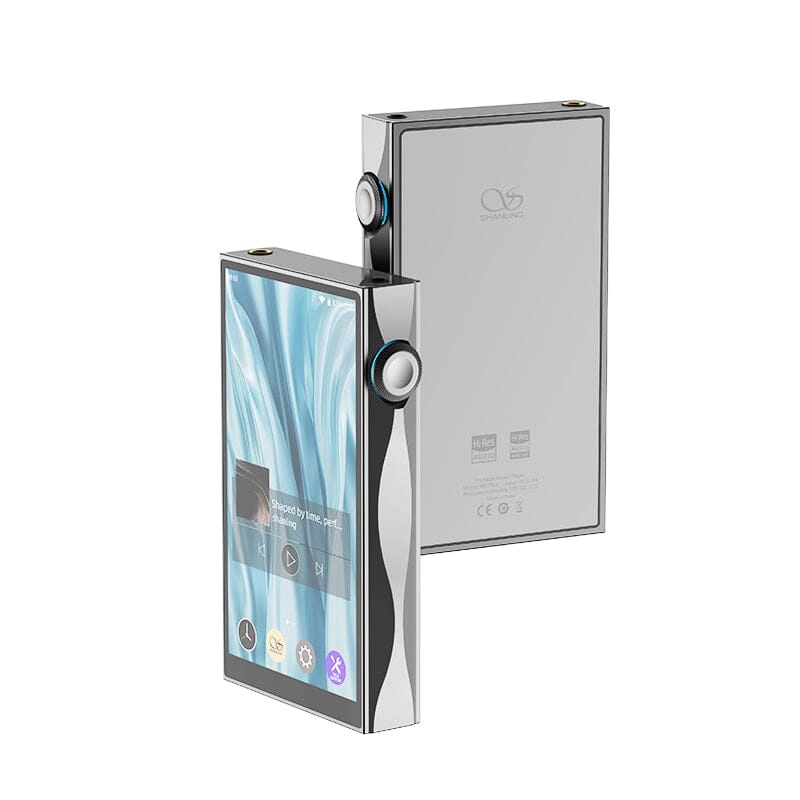

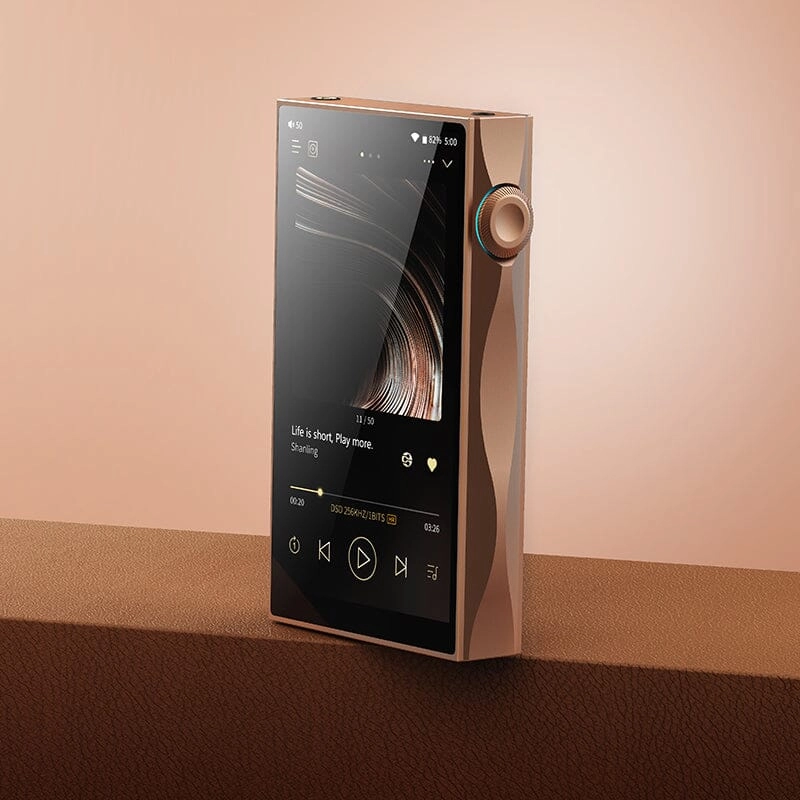

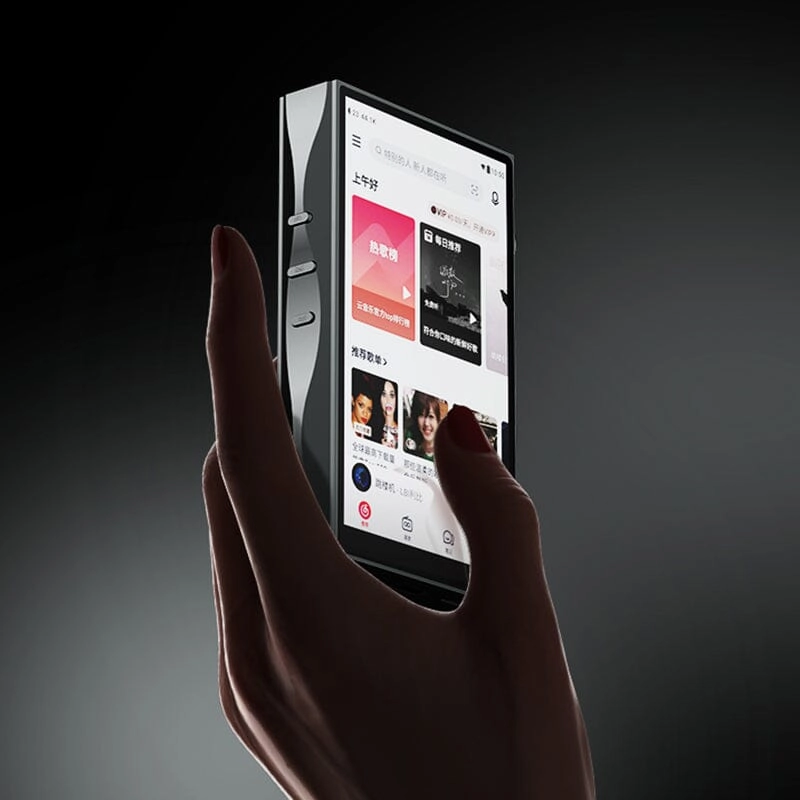

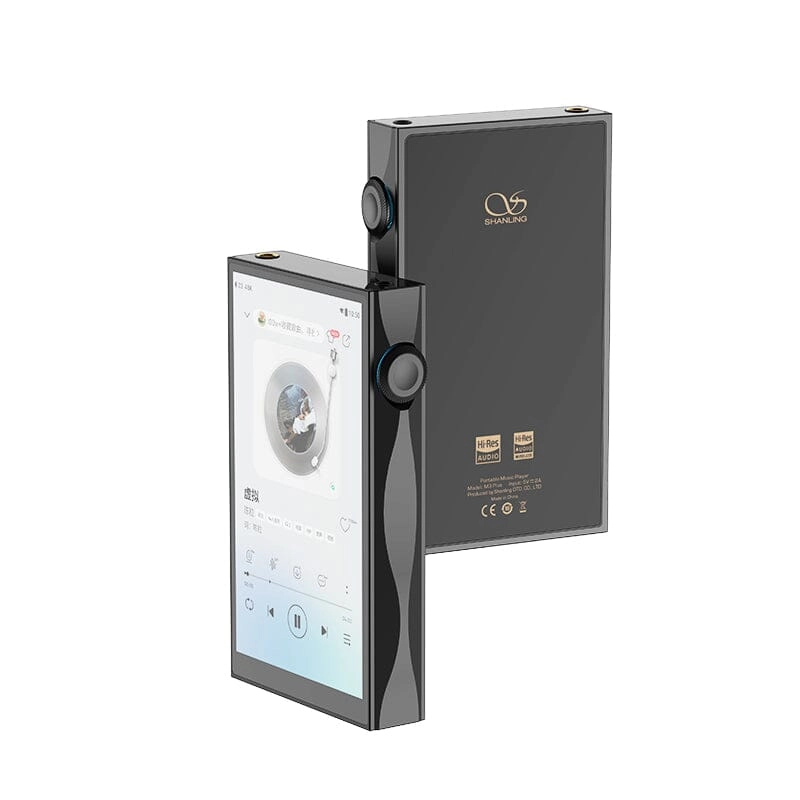

Shanling M3 Plus brings an all-new curvy design theme. The player has an aluminium alloy body with a smooth and curvy design pattern. On the sides, we have a bevelled design in a curvy manner. The player is available in three color options, Mocha, Black, and Silver, each color looks perfect.
Quad-DAC Architecture:-
In order to pursue and bring advanced high-resolution audio signal processing with the latest Shanling M3 Plus, Shanling has equipped this audio player with a quad-DAC arrangement. It features four units of CS43198 32-bit DAC chips. They support 32-bit/768kHz PCM and native DSD512 audio signal processing. Enjoy impressive Hi-Fi audio performance with the quad DAC setup on the Shanling M3 Plus.
Strong Amp Section:-
Shanlign M3 Plus packs a powerful output with its strong amp section. Shanling has featured two SGM8262 amp chips, which produce a clean and powerful output thrust. It achieves an output power of about 800mW per channel through the balanced 4.4mm port.
Open Android 13 OS With AGLO Technology:-
Shanling M3 Plus features an open Android 13 OS with AGLO(Android Global Lossless Output) Technology. With Android 13 support, users can download different media and streaming applications on the M3 Plus easily. The AGLO technology makes sure you get true HiFi audio content across different applications without the Android sample rate conversion issue.
Smooth UI with Snapdragon SoC:-
Shanling M3 Plus provides a silky smooth user interface where you can install and run multiple media and streaming applications with ease. The player features a Snapdragon 665 SoC along with 4GB RAM and 64GB Internal Storage. With the Snapdragon 665 SoC chipset, the interface is smooth and lag-free even with demanding media applications.
Long-Lasting Battery Performance:-
Shanling M3 Plus is equipped with a 3,500mAh battery that provides a durable, long-lasting battery performance. The music player has a rated durability of about 14 hours in single-ended mode and about 11 hours in balanced output mode.
