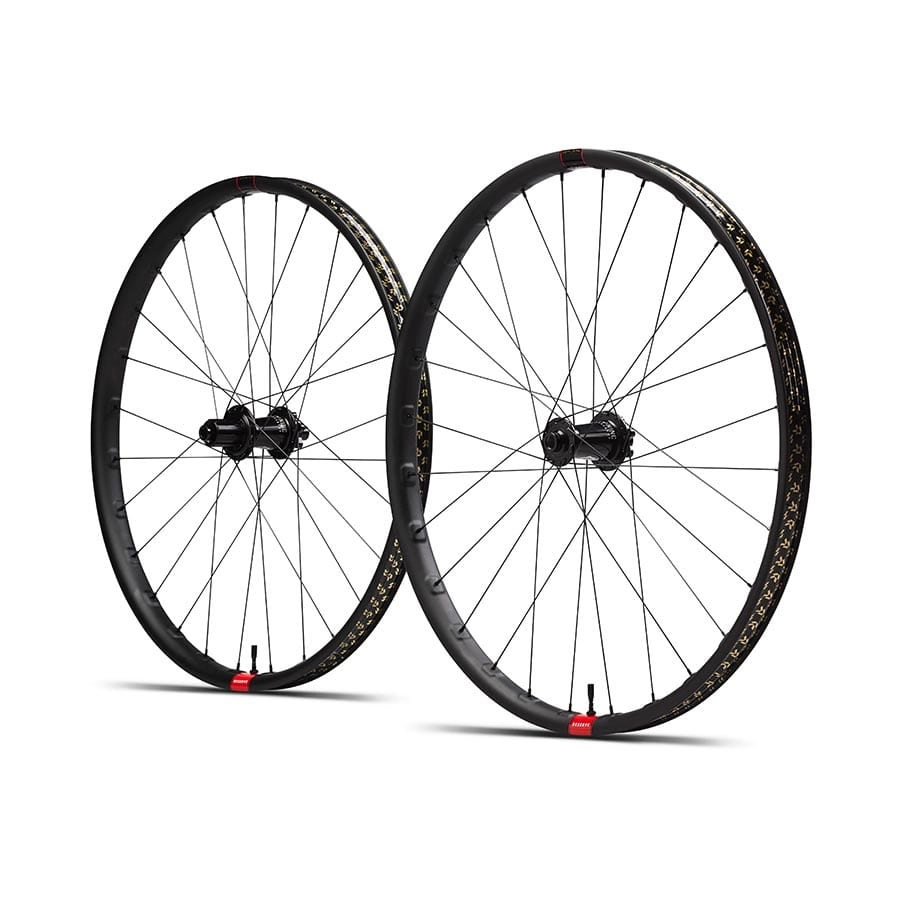

• The Ultimate Trail bike Wheelset

• 30|HD is specially designed for trail riding and the abuse trail bikes dish out

• 30|HD's redesigned rim bed eases tubeless installation, with a shaped rim bed utilizing offset spoke holes that allows the tire to easily push past the bead bump to seat tubeless tires

• Asymmetrical rims, like those on the 30|HD, build stiffer, stronger and more reliable wheels by improving the bracing angles and equalizing the spoke tensions between the drive and non-drive side spokes

• 30mm inner rim width, 20mm rim depth

• 2.3-2.5recommended tire wdith range

• 28 spokes

• 4mm spoke bed offset

• Boost hub spacing

• J-Bend spokes

• 6 bolt rotor mount

Attributes

Depth	20mm
Skewers Included	No
Wheel Weight	1861g
Rim Drilling	28
Rim Internal Width	30mm
Axle Type	F: 15mm, R: 12mm
Rim inner width range	28-34.9mm
Hub Model	I9 1/1
Rim Construction	Carbon
Valve	Fillmore
Rim Material	Carbon
Hub Spacing	F: 110, R: 148
Wheel-Brake Comp.	Disc IS 6-bolt
Rim Color	Black
Rim Model	30|HD
Position	Front and Rear
Spoke Type	J-Bend
Wheel Diameter/ISO	27.5'' / 584
